Single-Sided Aluminum PCB for LED Lighting
We manufacture single-sided aluminum PCBs for LED lighting, with practical specifications, factory-direct pricing, and stable batch production for repeat orders.
Service Fit
Is This Service Right for You?
Quick fit check for buyers. The service is optimized for practical LED lighting applications and mass production.
Typical Aluminum PCB Specifications
The following are common specifications used in regular LED lighting production.
| Specification Item | Details |
|---|---|
| Product Type | Single-sided aluminum PCB (MCPCB) |
| Primary Application | LED lighting and light boards |
| Board Thickness (mm) | 0.6 / 0.7 / 0.8 / 1.0 / 1.2 / 1.4 / 1.6 |
| Copper Thickness | 12 / 25 / 35 μm; 12 μm is most common |
| Surface Finish | OSP / HASL |
| Circuit Process | Exposure process available |
| Board Separation | CNC routing for samples; CNC routing or die punching for volume orders |
| Quality Inspection | Process checks + manual circuit inspection + AOI inspection |
| Thermal Conductivity | About 1.0 W/m·K for standard material |
| Order Quantity | No fixed MOQ; orders are usually quoted by square meter |
Why Aluminum PCB Is Used in LED Lighting
LED products generate heat during operation. If heat is not released properly, product stability and working life can be affected.
Aluminum PCB helps transfer heat away from LED chips, which helps:
- Reduce heat accumulation
- Improve product stability
- Support longer working life in daily use
Aluminum PCB is a practical and widely used solution for LED lighting products.
Common Application Areas
Typical LED product scenarios where aluminum PCBs are commonly used.
How Production Is Handled
A standard and controlled production flow is applied to support stable delivery and repeat orders.

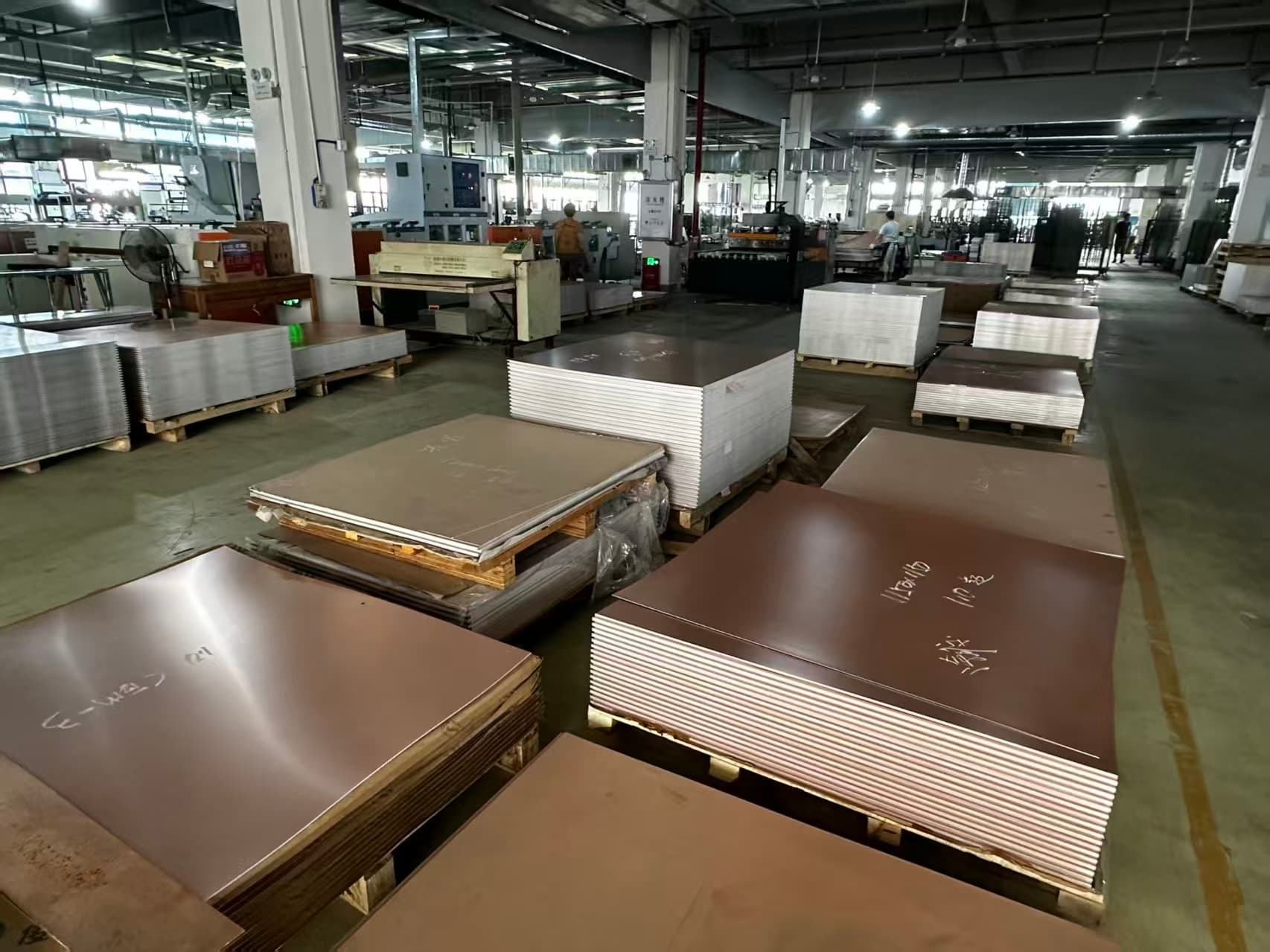

Incoming QC
Raw material quality check

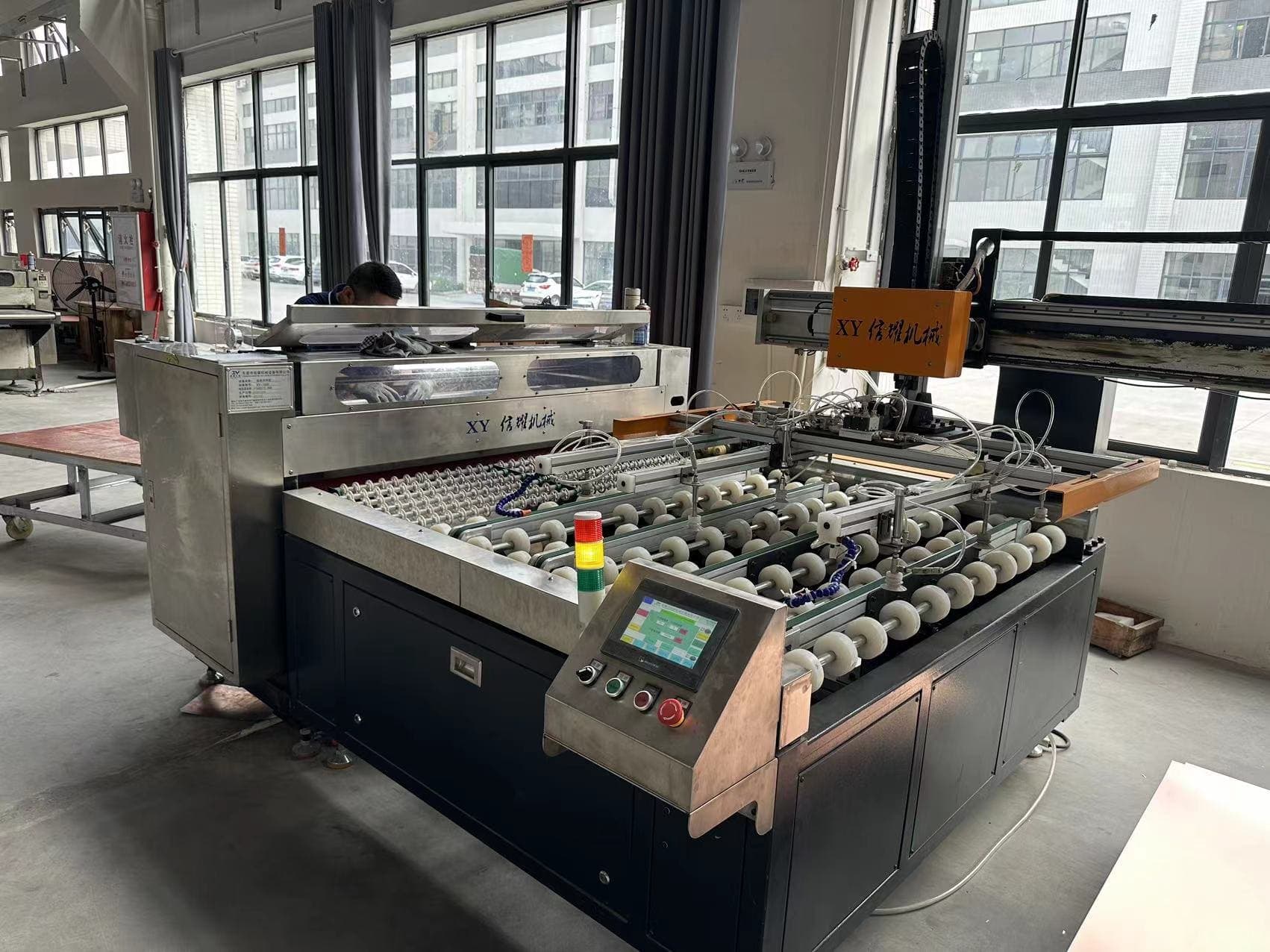

Cutting
Precision cutting

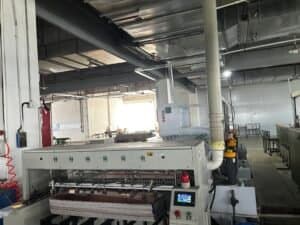

Grinding
Surface preparation

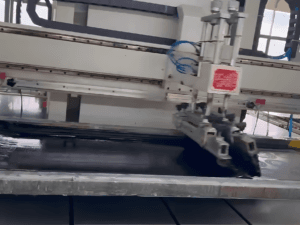

Circuit
Pattern transfer

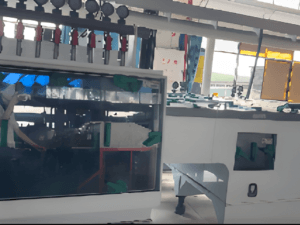

Etching
Circuit forming

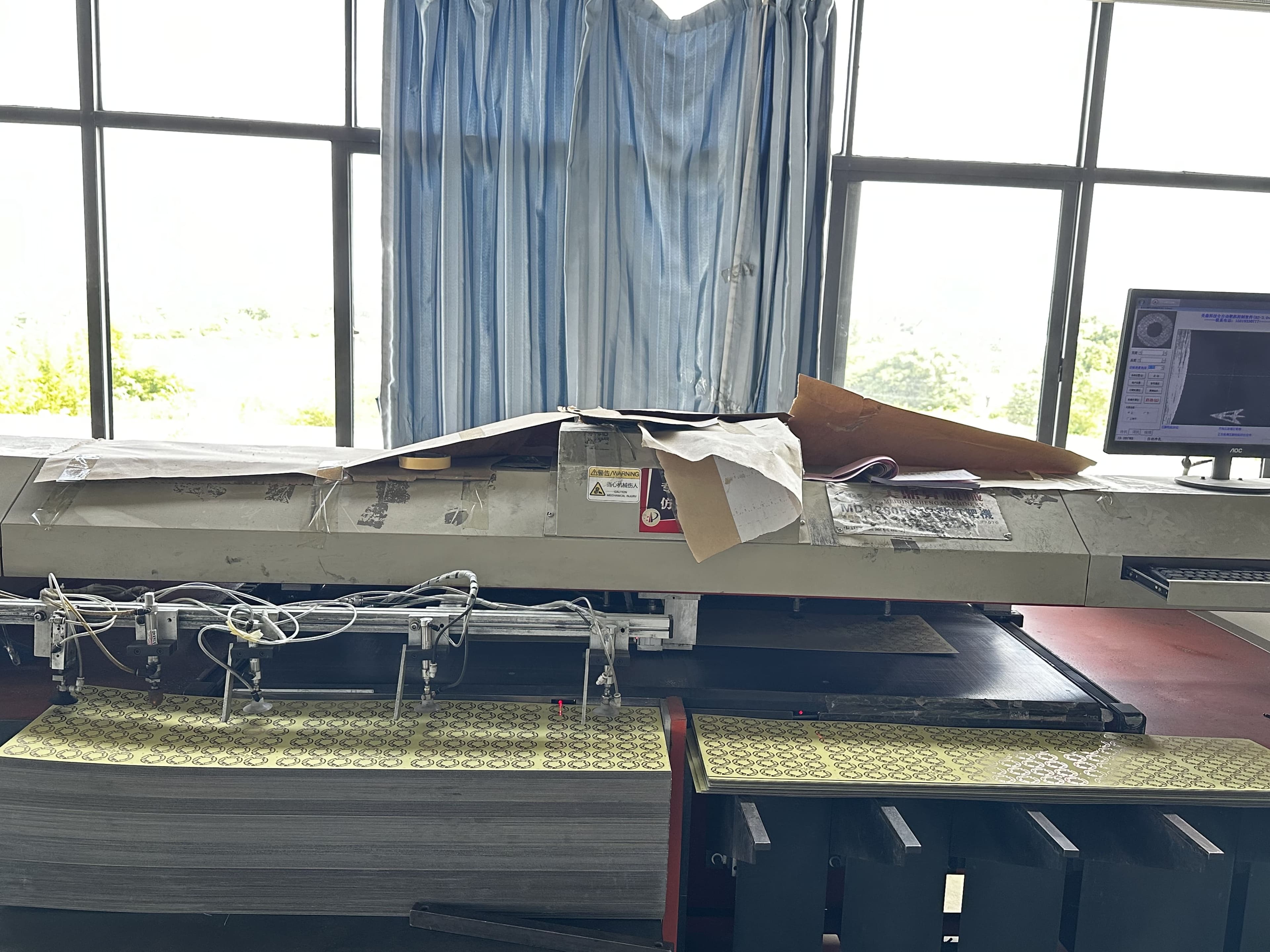

Drilling
Precision drilling

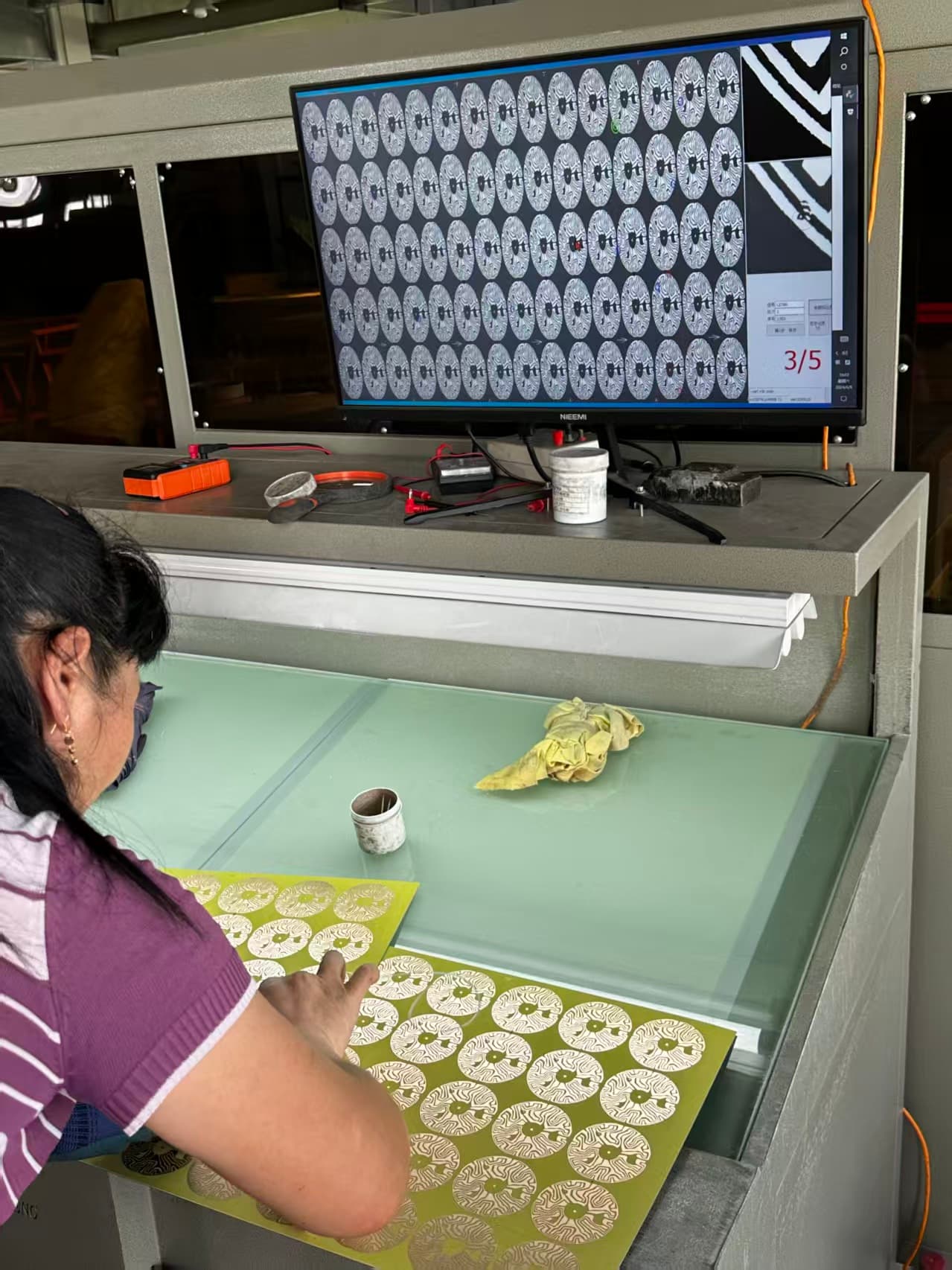

AOI Inspection
Automated optical inspection

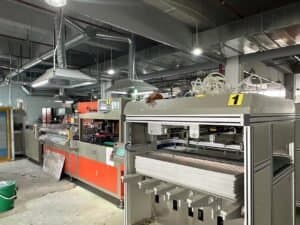

Solder Mask
Solder mask protection

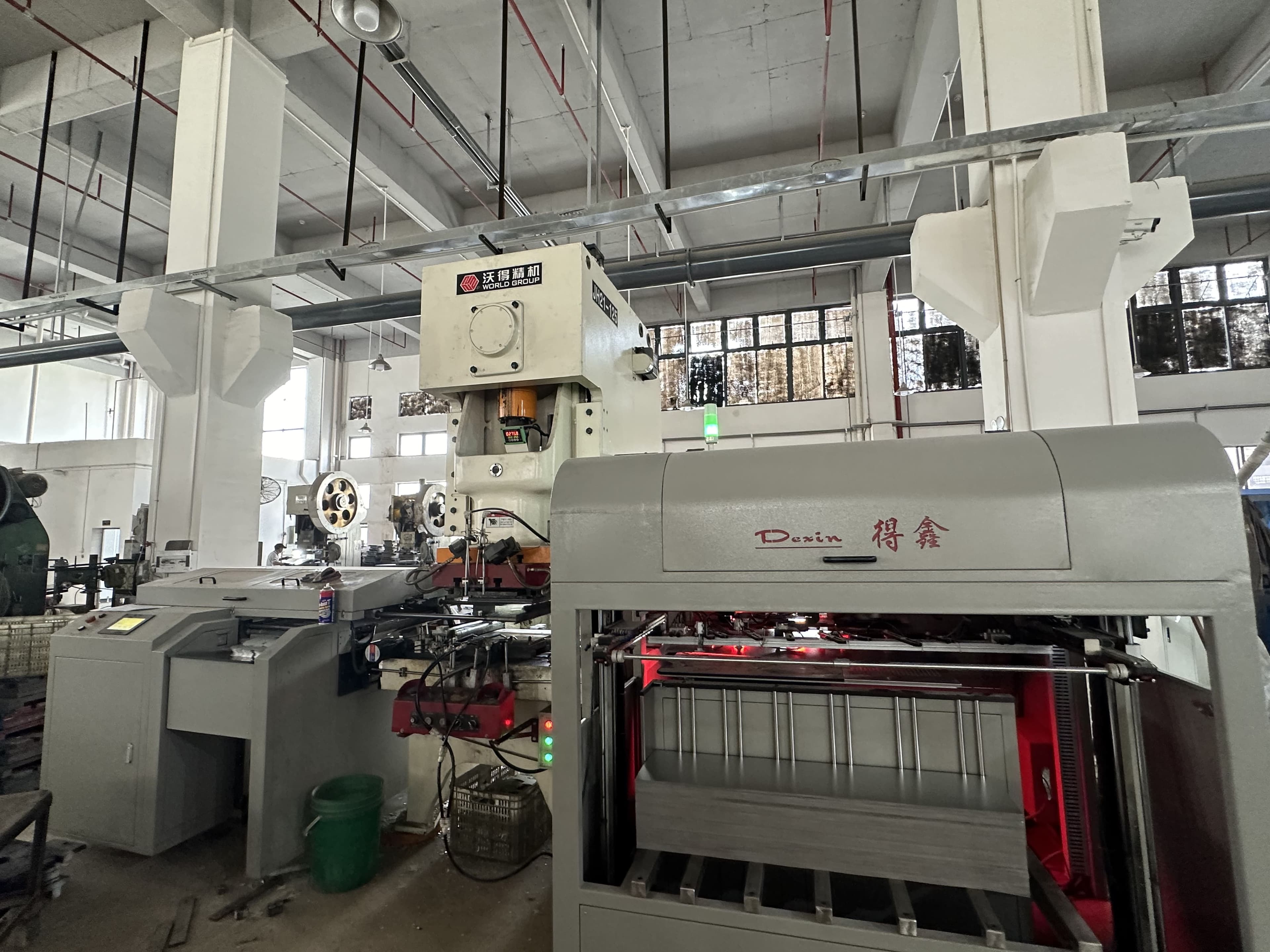

Forming
Accurate profile forming

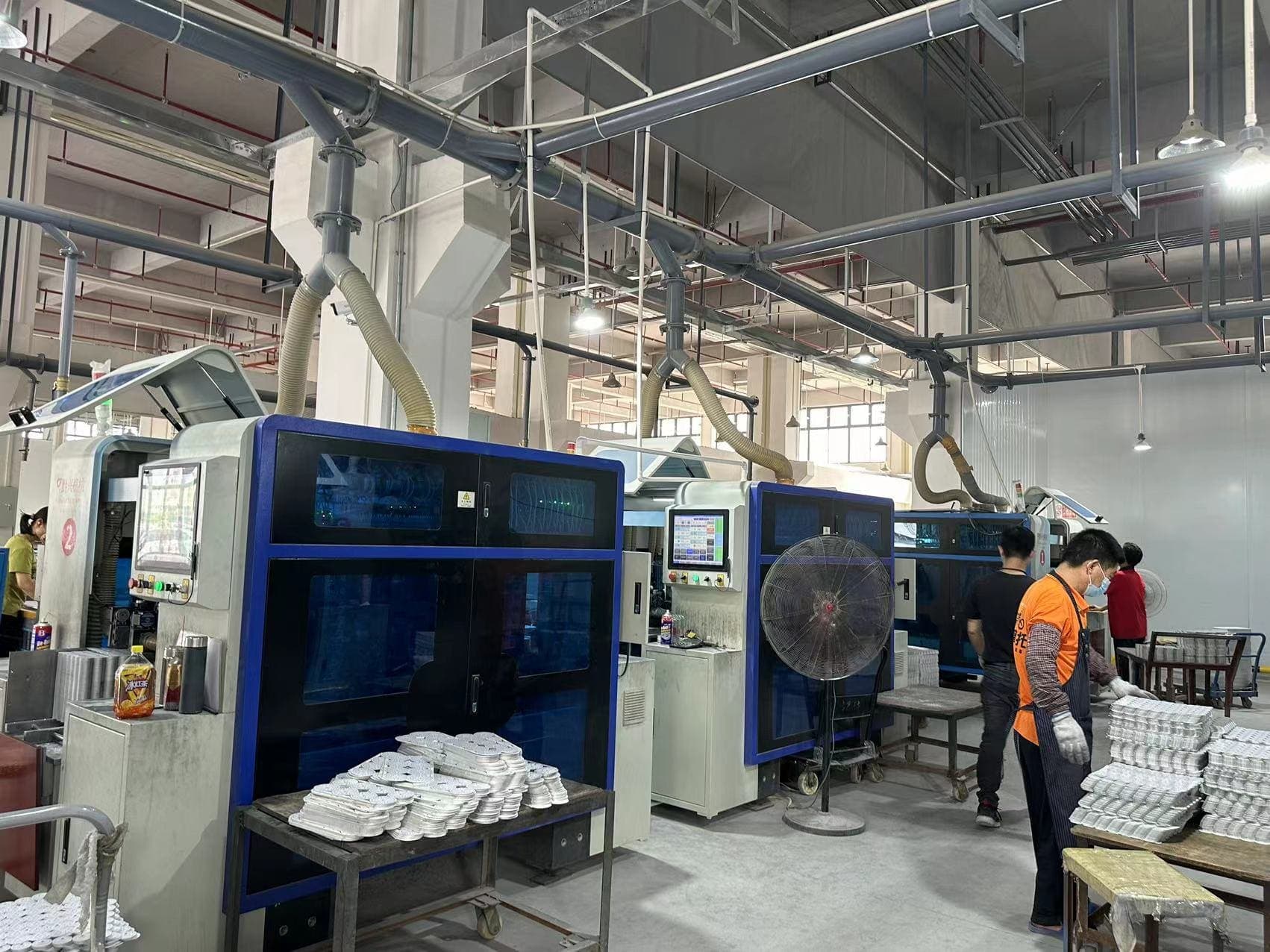

V-CUT
Panel separation

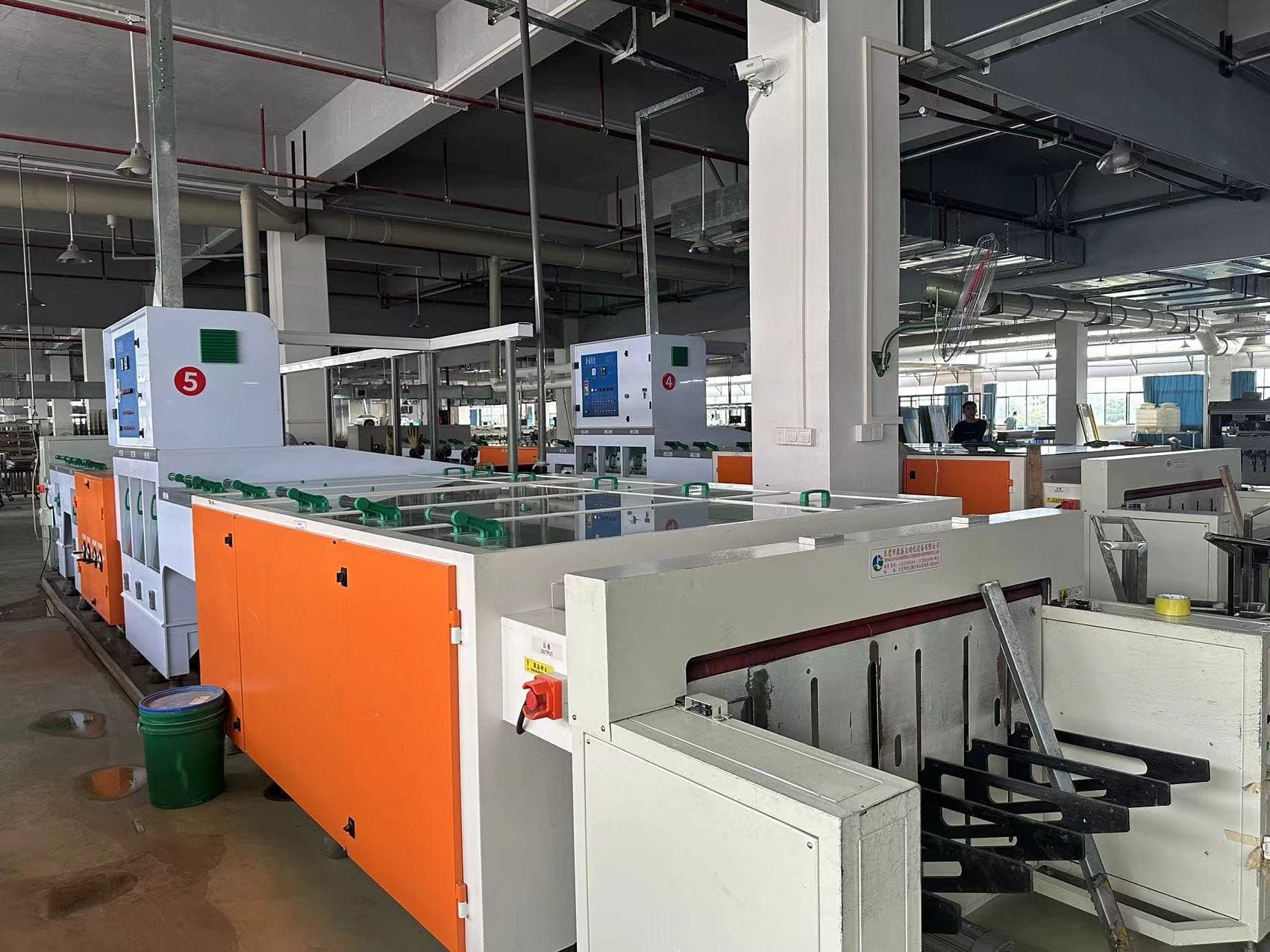

OSP
Anti-oxidation surface finish
Packing
Final inspection & packing
Production & Quality Overview
Production & Quality Overview
Capacity, QC checkpoints, and compliance are confirmed before order for procurement clarity.
Capacity & Lead Time
Confirmed before order
Quality Checks
Stable repeat runs
- Incoming QC (raw material inspection)

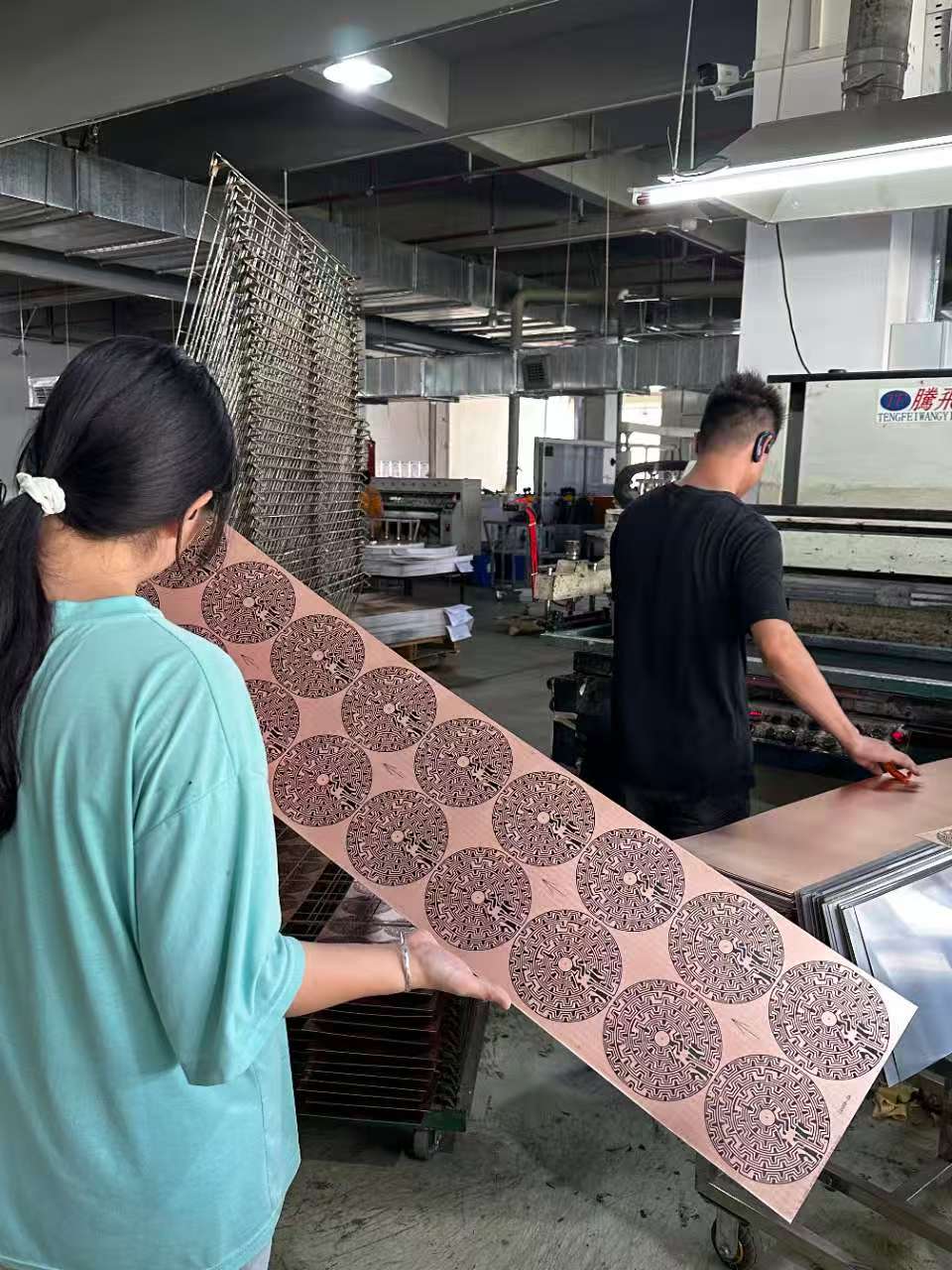

- Manual circuit inspection
- AOI inspection
- Pre-shipment inspection
Materials & Compliance
RoHS / REACH reports available
Material and compliance reports can be provided upon request. Confirm the exact document list and any special material requirements before quotation.
Optional Services
These options help reduce coordination work and simplify purchasing.
SMT Assembly
LED component mounting on aluminum PCB for finished LED light boards.
Explore LED PCB assemblyTurnkey PCB Assembly
Aluminum PCB fabrication, component sourcing, and SMT assembly coordinated through one supplier.
Explore turnkey assemblyRelated LED Aluminum PCB Guides
Compare materials, choose practical specifications, and prepare the details needed for an aluminum PCB quotation.
FAQ
Quick answers for common purchasing questions.
Is this aluminum PCB suitable for mass production and repeat bulk orders?+
Yes. This single-sided aluminum PCB is designed for stable mass production, with standardized processes to ensure batch-to-batch consistency for repeat orders.
What is the typical lead time for aluminum PCB mass production?+
Small batches usually take about 5 days, or about 10 days during peak periods. Large batches usually take about 7 days, or about 15–20 days during peak periods. Final lead time depends on materials and the production schedule.
Can aluminum PCB samples be provided before bulk production?+
Yes. Standard sample lead time is 3–5 days, with 1-day service possible for suitable urgent projects. There is no fixed MOQ; quantity and pricing are confirmed from the project specifications.
What specifications are required to quote an aluminum PCB order?+
To provide an accurate aluminum PCB quotation, we require: - Gerber files - Board thickness - Copper thickness - Surface finish - Order quantity
What copper thickness options are available for aluminum PCBs?+
Supported copper thicknesses include 12 μm, 25 μm, and 35 μm. The most common option is 12 μm. Other requirements should be confirmed before quotation.
Is this aluminum PCB optimized for cost-sensitive bulk orders?+
Yes. This aluminum PCB is optimized for cost-sensitive bulk production, with factory-direct pricing and stable specifications for long-term repeat supply.
Get Started
If a stable aluminum PCB supplier for LED lighting is needed, send Gerbers + basic specs to get a quotation.
