OSP Shelf Life on LED Aluminum PCB: How Long Before Assembly?

Organic Solderability Preservative (OSP) is a highly cost-effective surface finish, but it has a relatively short shelf life compared to HASL or ENIG. Under proper storage conditions, OSP-coated PCBs generally remain solderable for 3 to 6 months. Once you open the sealed moisture-barrier packaging, however, you should assemble the boards within 24 to 48 hours to prevent oxidation on the exposed copper pads.

Managing OSP boards requires strict storage protocols, as a degraded OSP coating can ruin solder joint quality and thermal performance. Here is how to store, inspect, and handle OSP boards to avoid assembly issues.

Understanding OSP Degradation (IPC-1601 Guidelines)

According to the IPC-1601 guidelines for printed board handling and storage, OSP is an organic coating that preserves solderability by preventing copper oxidation. Because OSP is organic, it is sensitive to environmental factors like humidity, ambient heat, and UV exposure.

[!WARNING] Unlike HASL or ENIG boards, you should not bake OSP boards to remove moisture before assembly. The high temperatures of a baking oven will degrade the organic film, leaving the copper pads vulnerable to immediate oxidation and severe soldering failures.

For OSP boards, you must rely on preventative storage: sealed vacuum-barrier bags, desiccant packs, relative humidity indicator cards, and a strict First-In, First-Out (FIFO) inventory workflow.

Recommended Storage Conditions

To protect your OSP boards from oxidation, follow these storage rules:

• Sealed Packaging: Keep boards sealed in their original moisture-barrier bags with desiccant and a humidity indicator card (HIC). Do not open the bags until you are ready for assembly.
• Temperature & Humidity: Store boards in a climate-controlled room (ideally under 30°C and 60% RH). Avoid hot warehouses, direct sunlight, and humid zones.
• Handling: Never touch the copper pads with bare hands. Finger oils and perspiration will corrode the OSP layer and cause dewetting. Always wear clean ESD gloves.
• SMT Packaging Design: Ask your fabricator to pack boards in batch sizes that match your planned SMT run. If you run 500 boards per shift, packaging them in sets of 500 ensures that no leftover boards sit exposed on open racks.

Why OSP Quality Impacts LED Heat Dissipation

On an aluminum PCB, the solder joint is a critical part of the thermal path:

$$\text{LED Junction} \rightarrow \text{Solder Joint} \rightarrow \text{Copper Pad} \rightarrow \text{Dielectric Layer} \rightarrow \text{Aluminum Base} \rightarrow \text{Heatsink}$$

If the OSP film degrades, the copper pads oxidize, causing poor wetting, solder balling, or voids in the solder joint during reflow. In high-power LED applications, voids in the thermal pad block the heat transfer path. This causes the LED junction temperature to rise, which directly decreases brightness, shifts the color output, and shortens the lamp's operating lifetime.

SMT Timeline After Opening

Once you break the vacuum seal on OSP boards, the clock starts:

• 24-Hour Target: Try to complete the first SMT reflow run within 24 hours of opening the package.
• 48-Hour Limit: If boards remain unassembled after 48 hours, store them in a dry cabinet (under 10% RH) or reseal them in a moisture-barrier bag.
• Double-Reflow Designs: If your board requires SMT assembly on both sides, complete the second reflow within 24 hours of the first. OSP degraded by the heat of the first reflow will oxidize rapidly.

How to Inspect OSP Boards Before Assembly

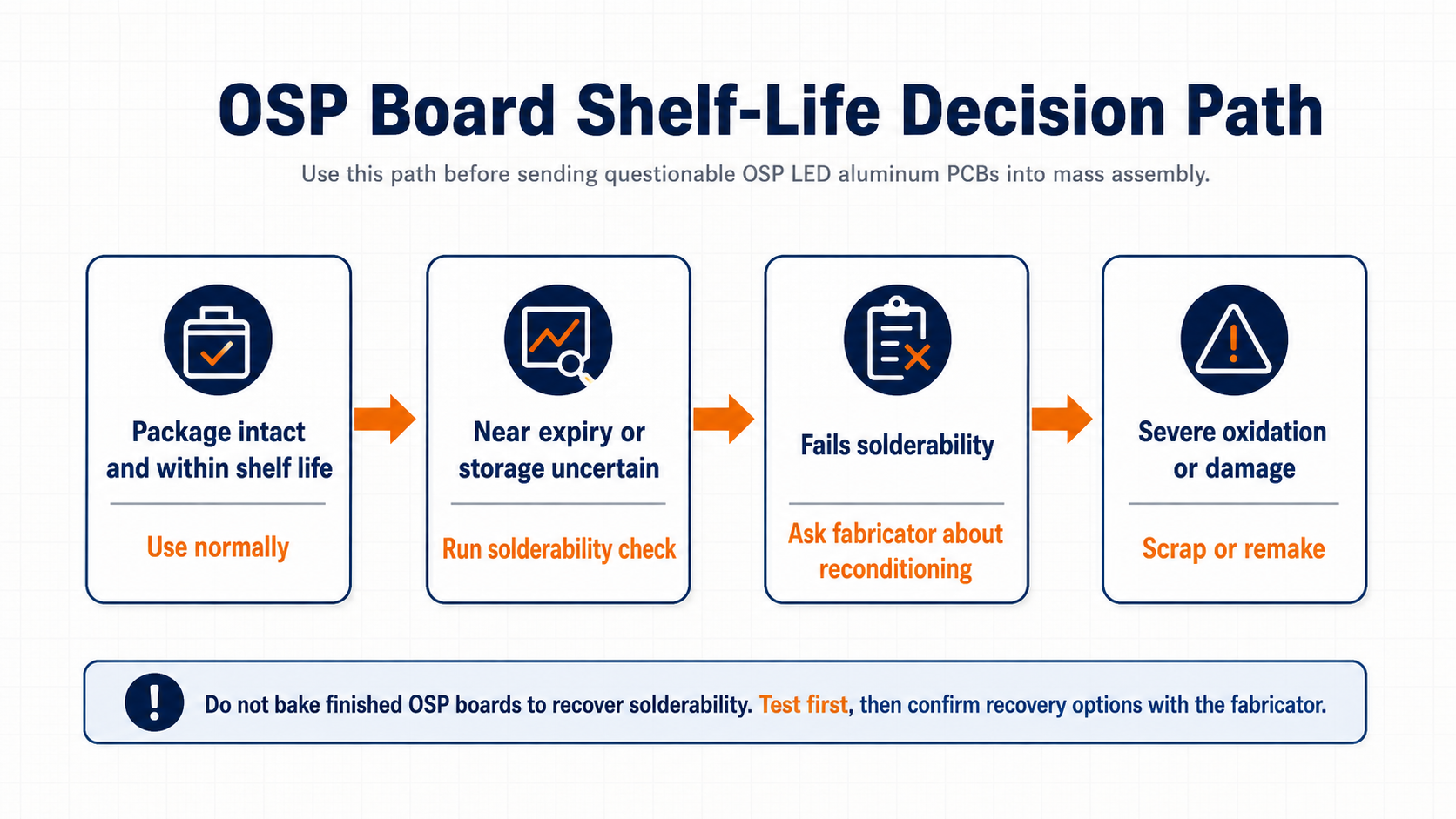

If OSP boards are near their 6-month expiration date, or if a vacuum bag arrives damaged, verify their condition before starting production.

1. Visual Inspection

Inspect the copper pads under magnification.

• Good OSP: The copper pads should look bright, uniform, and golden or pale amber.
• Oxidized OSP: Dull, patchy, dark brown, or black pads indicate advanced oxidation. You should not use these boards for assembly.
• Handling Marks: Any smudges or fingerprints indicate direct contact, which will likely fail to wet during reflow.

2. Solderability Testing

Visual checks can identify obvious oxidation, but they cannot verify border-line boards. If you are unsure, run a solderability test per the IPC J-STD-003 standard, or run a test board through your SMT reflow line. Solder paste should wet the copper pads completely and smoothly, leaving no dewetted spots or solder beading.

Reconditioning Expired OSP Boards

If your OSP boards fail solderability testing or have expired, you cannot restore them by baking. However, a qualified PCB fabricator can often recondition the boards.

The reconditioning process involves:

1. Stripping the degraded OSP film.
2. Micro-etching the copper pads to remove surface oxidation.
3. Re-applying a fresh OSP coating.

Reconditioning is only practical if the boards are structurally sound. If the copper pads are deeply corroded or scratched, it is safer and more economical to scrap and remake the boards.

Choosing the Right Surface Finish

Use this table to decide whether OSP is the best fit for your logistics and storage capabilities:

For a head-to-head comparison of OSP and HASL, read our comparison guide: OSP vs. HASL for LED Boards.

Sourcing Checklist for OSP Boards

Before placing an order for OSP-finished aluminum PCBs, ensure your team and supplier align on these points:

• Production Scheduling: Align the PCB delivery date closely with your SMT assembly schedule so boards do not sit in your warehouse for months.
• Packaging Specifications: Specify vacuum-barrier packaging with desiccant and HIC. Request custom pack sizes matching your single-run SMT batch quantities.
• Warehouse Monitoring: Ensure your storage area maintains temperature and humidity controls.

If you have questions about OSP storage or need help choosing the right surface finish for your next LED project, contact our team. We can help you select a finish that matches your production timeline and storage conditions.
