Aluminum PCB vs FR4: 5 Key Differences

When choosing between aluminum and FR4 PCBs, the decision usually comes down to five factors: material substrate, heat dissipation, cost, mechanical stability, and design flexibility.

Aluminum PCBs excel at managing heat, making them the standard choice for high-power LED and power conversion designs. FR4 remains the default for most other electronics, offering lower costs and much greater routing flexibility. Here is how they compare so you can choose the right board material for your project.

What Is an Aluminum PCB?

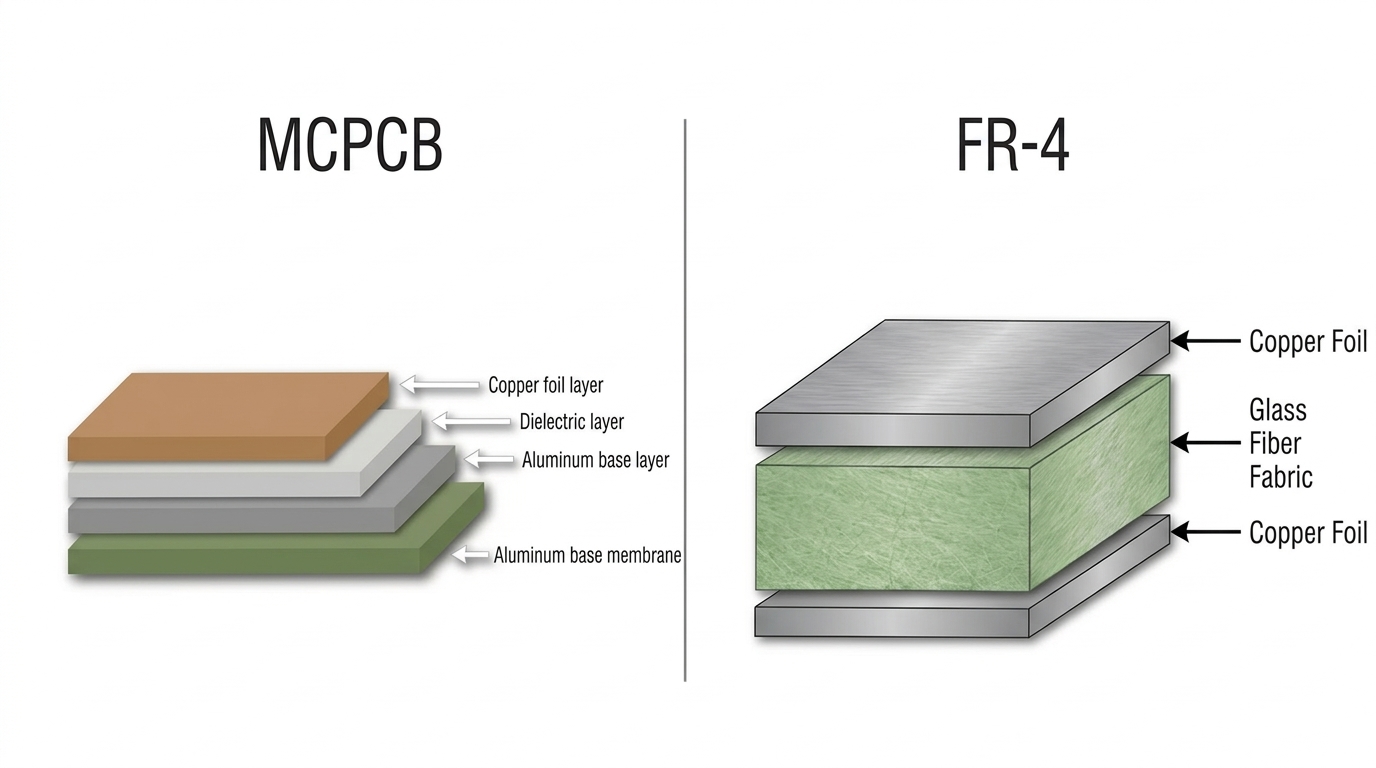

An aluminum PCB (often called a metal core PCB or MCPCB) replaces standard fiberglass with a metal base plate. A typical stackup includes three layers: a copper circuit layer, a thermally conductive dielectric layer, and the aluminum base. This structure moves heat away from components far more efficiently than standard materials, which is why it is common in high-heat applications.

What Is FR4 PCB?

FR4 (Flame Retardant 4) is a glass-fiber-reinforced epoxy laminate. It is the default material for the vast majority of electronics because it offers a reliable balance of cost, electrical insulation, mechanical strength, and manufacturing ease. A typical FR4 board consists of copper layers laminated onto a fiberglass-epoxy core.

Aluminum PCB vs FR4 PCB: Key Differences

Here is a quick side-by-side comparison:

1. Base Material and Board Structure

The substrate is the core difference. Aluminum PCBs use a metal base plate paired with a thin, thermally conductive dielectric. FR4 PCBs use a woven fiberglass-epoxy laminate. This structural difference determines the board's thermal behavior, mechanical rigidity, and routing flexibility.

2. Thermal Conductivity and Heat Dissipation

FR4 has a very low thermal conductivity, meaning it does not move heat efficiently through the board itself. In contrast, an aluminum PCB is engineered specifically to transfer heat away from hot components. The thin dielectric layer conducts heat from the copper traces directly to the aluminum base, where it can dissipate. If your design runs hot, aluminum is the better choice; for cool-running or low-power circuits, FR4 is sufficient.

3. Cost

FR4 is almost always the more economical choice at the board level. It is mass-produced using standard fabrication steps, keeping costs low. Aluminum PCBs cost more due to the metal base, specialized dielectric materials, and single-sided routing constraints.

However, looking only at the bare board price can be misleading. An aluminum PCB often eliminates the need for bulky external heatsinks, cooling fans, or complex mounting hardware, which can lower your overall product assembly cost.

4. Mechanical Strength and Thermal Stability

With its metal base, an aluminum PCB offers superior rigidity and dimensional stability. It resists warping and bending under high temperatures, making it ideal for applications exposed to thermal cycling, vibration, or harsh operating environments. FR4 boards are mechanically strong enough for standard electronics but can warp if exposed to localized, extreme heat without adequate thermal management.

5. Electrical Insulation and Design Flexibility

FR4 is a natural electrical insulator, which makes multilayer designs straightforward. You can easily route complex, dense circuits across 2, 4, or dozens of layers with inner planes for power and signals.

Aluminum PCBs are heavily constrained here. The vast majority of aluminum boards are single-sided because adding a second layer requires complex, expensive insulation steps. This makes aluminum PCBs best suited for simple layouts with high thermal demands, such as LED channels or simple power routing.

Typical Applications

Aluminum PCBs

Because they handle heat so well, aluminum PCBs are the standard choice for:

• LED Lighting: High-power LED modules, streetlights, automotive headlights, and backlight units.
• Power Electronics: Power supplies, converters, rectifiers, and motor drivers.
• Industrial Systems: Solid-state relays and high-current control circuits.

FR4 PCBs

FR4's routing flexibility makes it the default for:

• Consumer Electronics: Smartphones, computers, smart home devices, and IoT hardware.
• Industrial Controls: Complex multi-layer control boards and automation systems.
• Communications: Routers, modems, and RF devices.

How to Choose

To decide between the two, ask yourself these three questions:

1. How much heat does your design generate? If you have high-power LEDs or power components that will run hot, you likely need the thermal path of an aluminum PCB.
2. How complex is your circuit layout? If you need multiple signal layers, fine-pitch BGAs, or dense routing, FR4 is the only practical choice.
3. What is the system-level budget? While an aluminum board costs more than FR4, it may save you money by eliminating external heatsinks and simplifying your enclosure design.

The Bottom Line

Choose aluminum PCBs when thermal management is your primary constraint and your circuit layout is simple enough to fit on a single layer. Choose FR4 when you need multilayer routing, cost efficiency, and design flexibility, and your thermal loads can be managed through standard vias or air cooling.

If you have a design ready and aren't sure which material to specify, contact our engineering team. We can review your files and help you select the most reliable, cost-effective board stackup for production.
